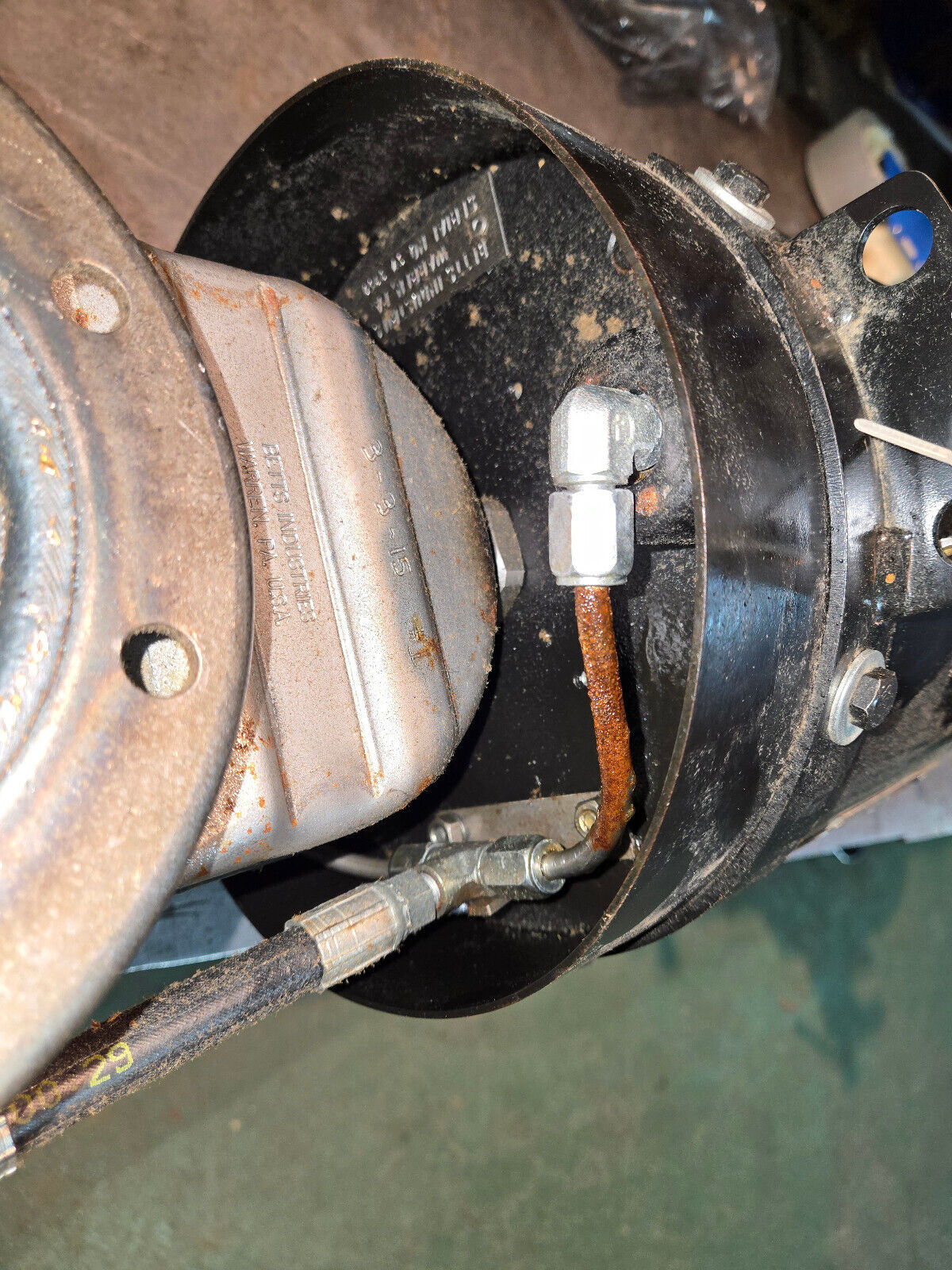

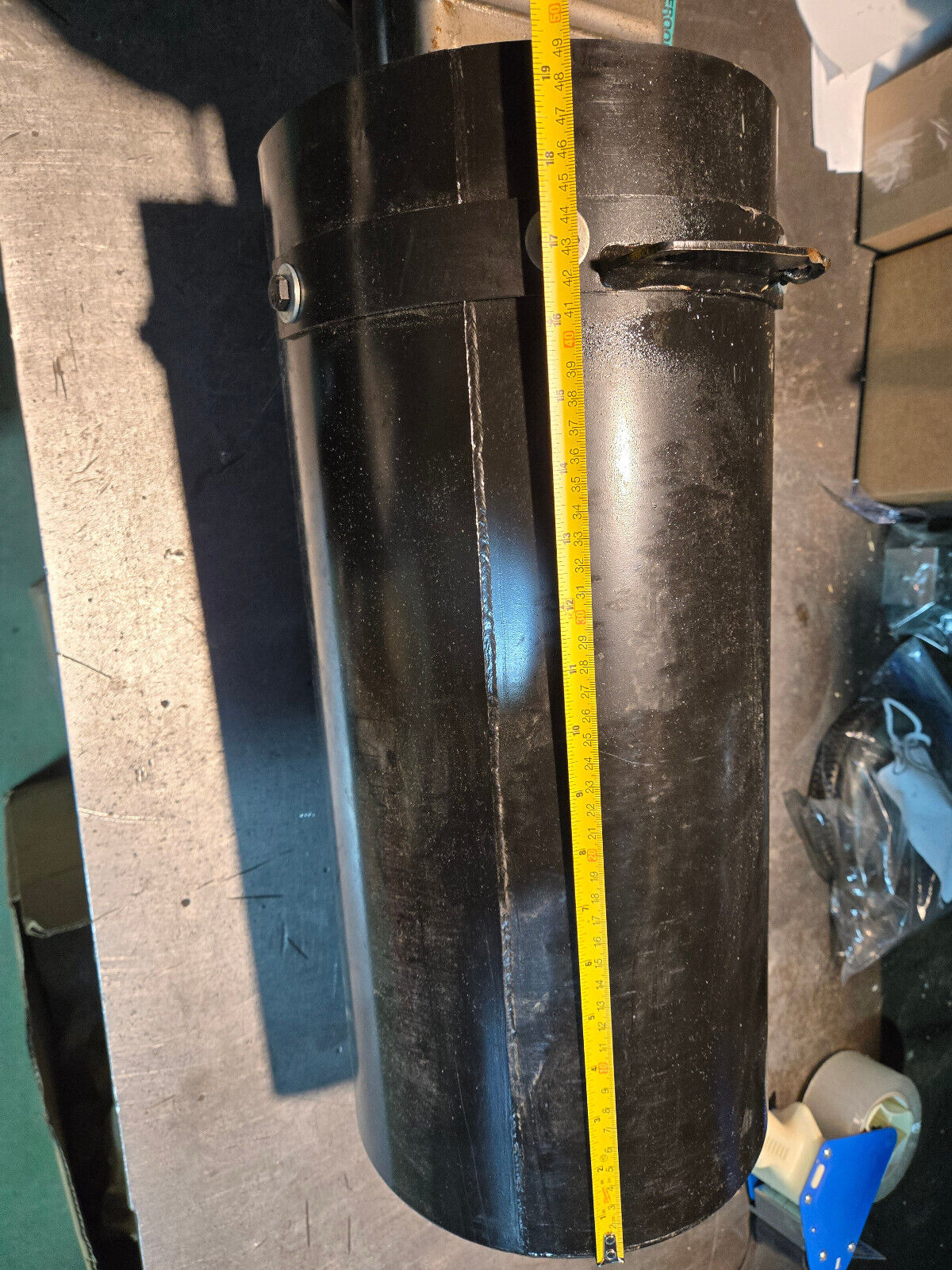

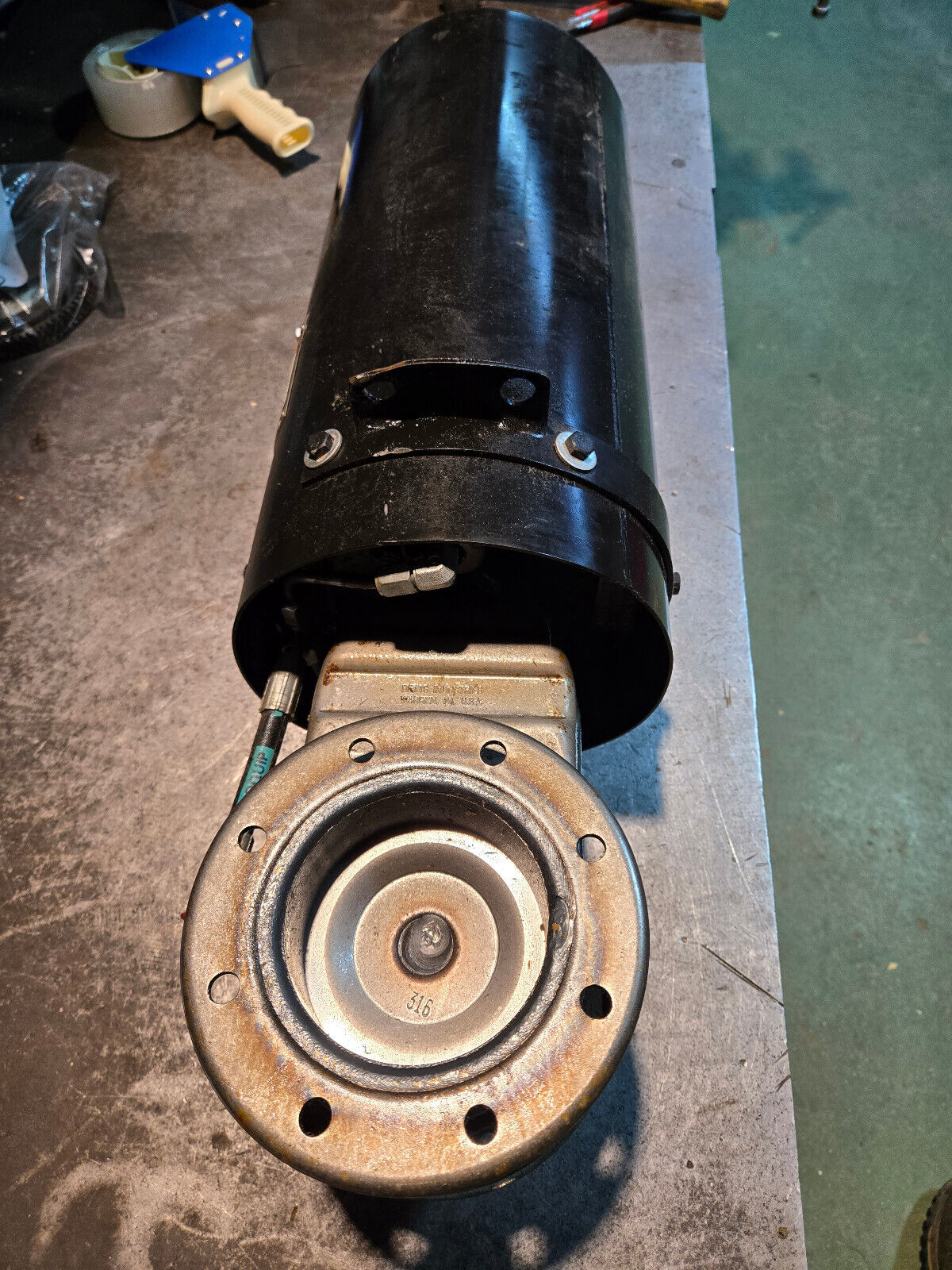

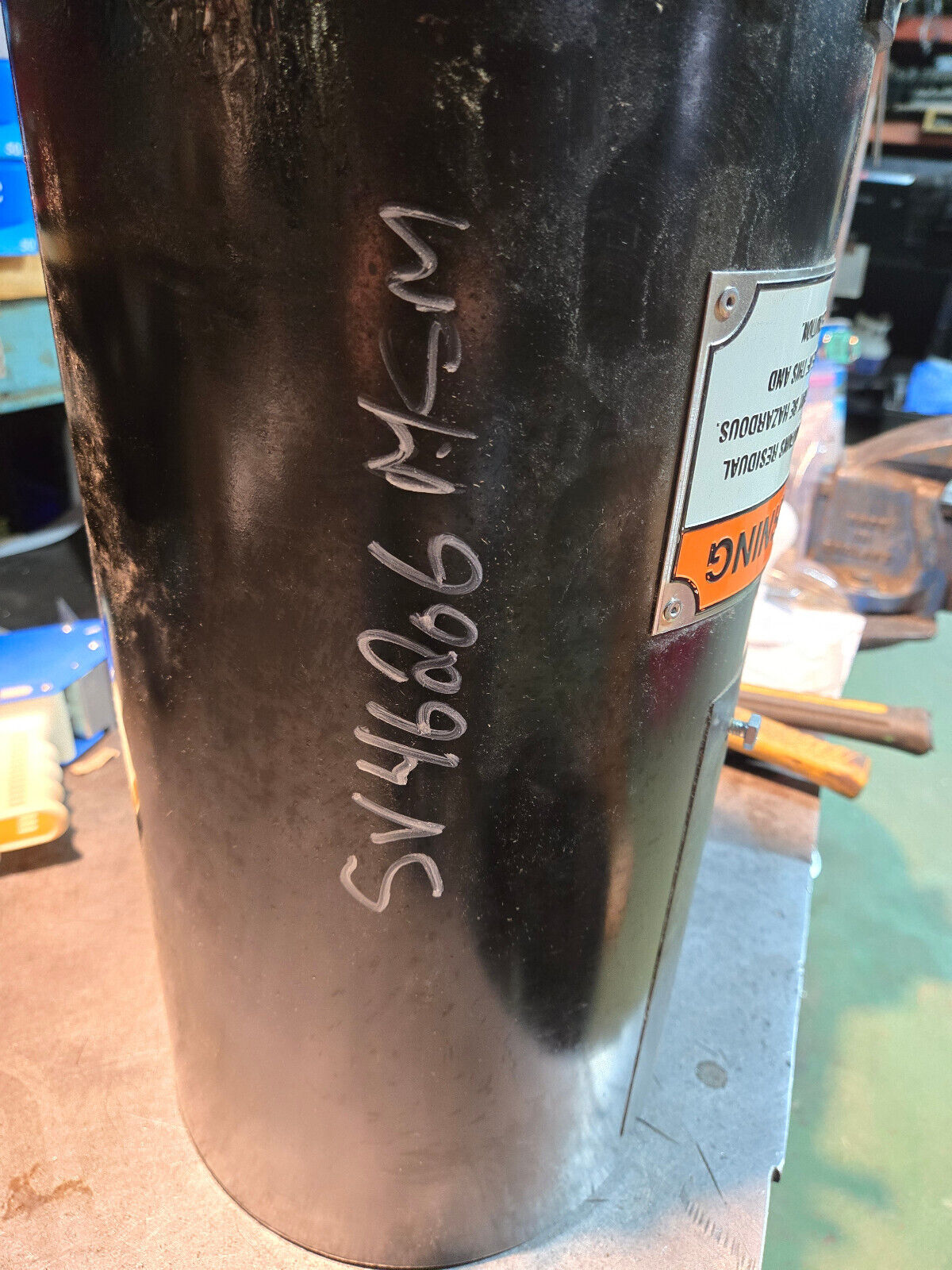

BETTS SV46206MSM SV46206-MSM Hydraulic Operated 4? Sliding Valve
BETTS SV46206MSM SV46206-MSM Hydraulic Operated 4? Sliding Valve is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
BETTS SV46206MSM SV46206-MSM Hydraulic Operated 4? Sliding Valve
Highlight title
Text to highlight a key feature of your product
Description
Description

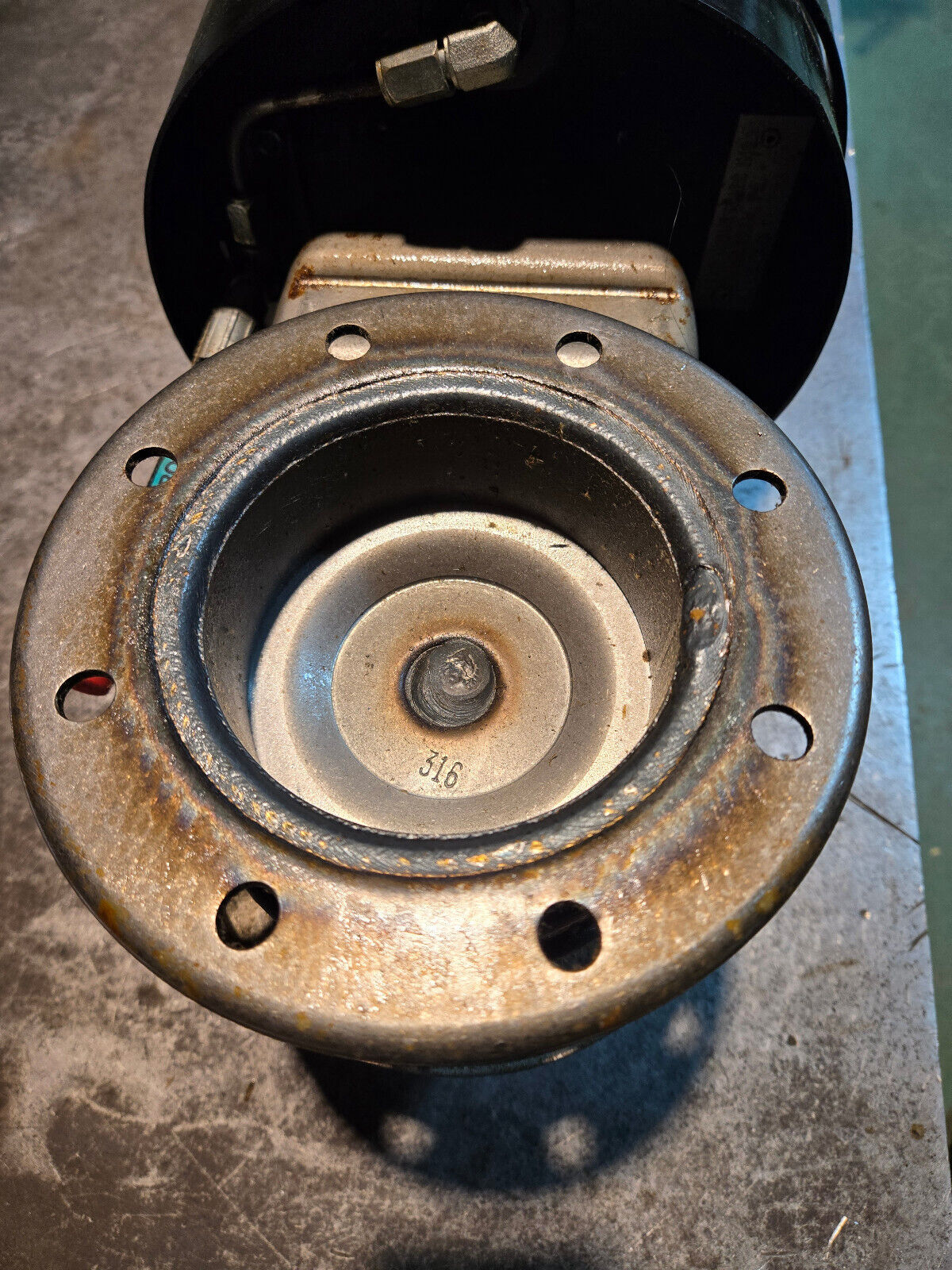

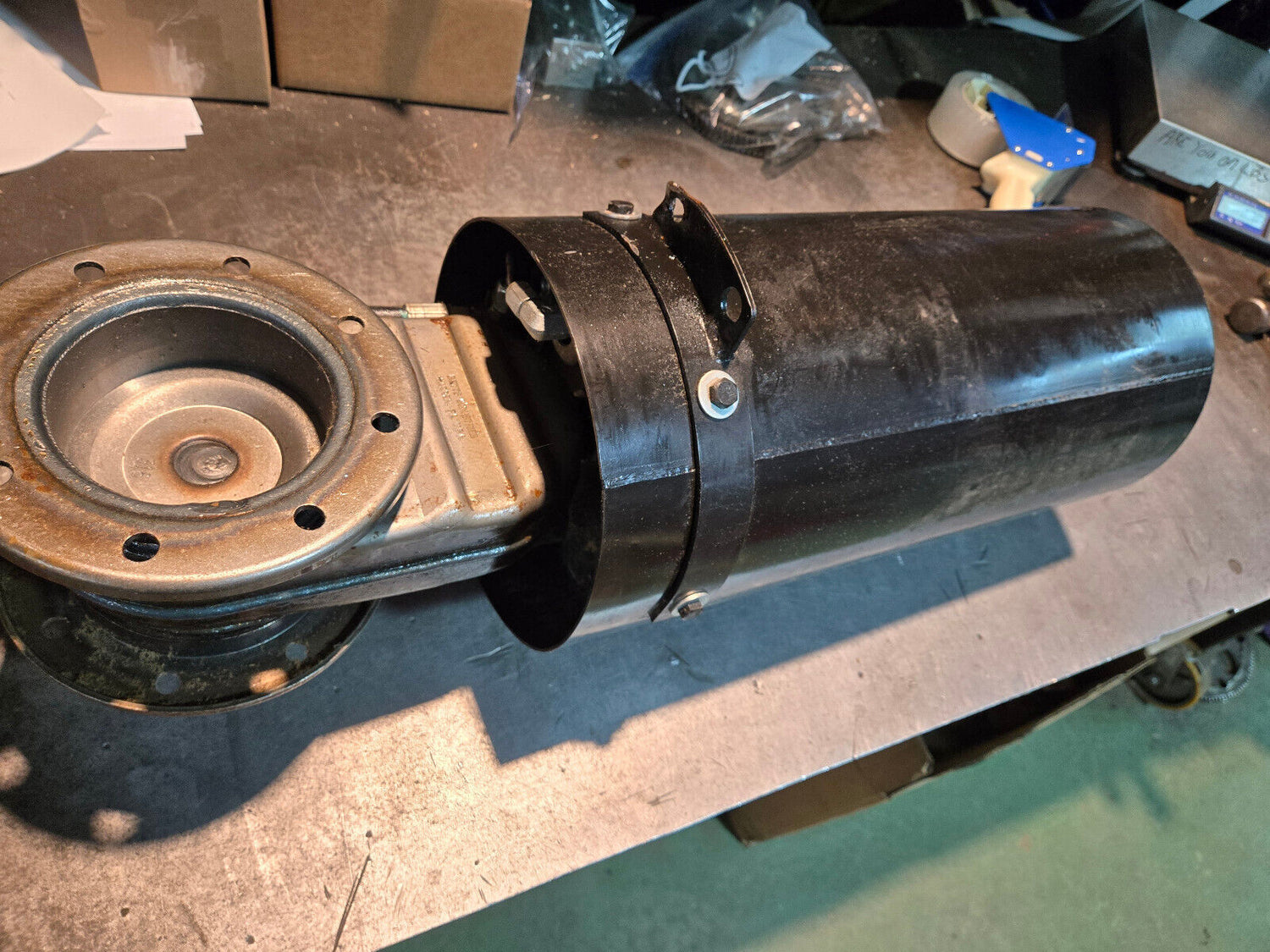

Hydraulic Operated 4″ Sliding Valve – TTMA Flange x TTMA Flange
- Hydraulically Operated
- Spring Closed
- TTMA or ANSI
- Flange Drilling

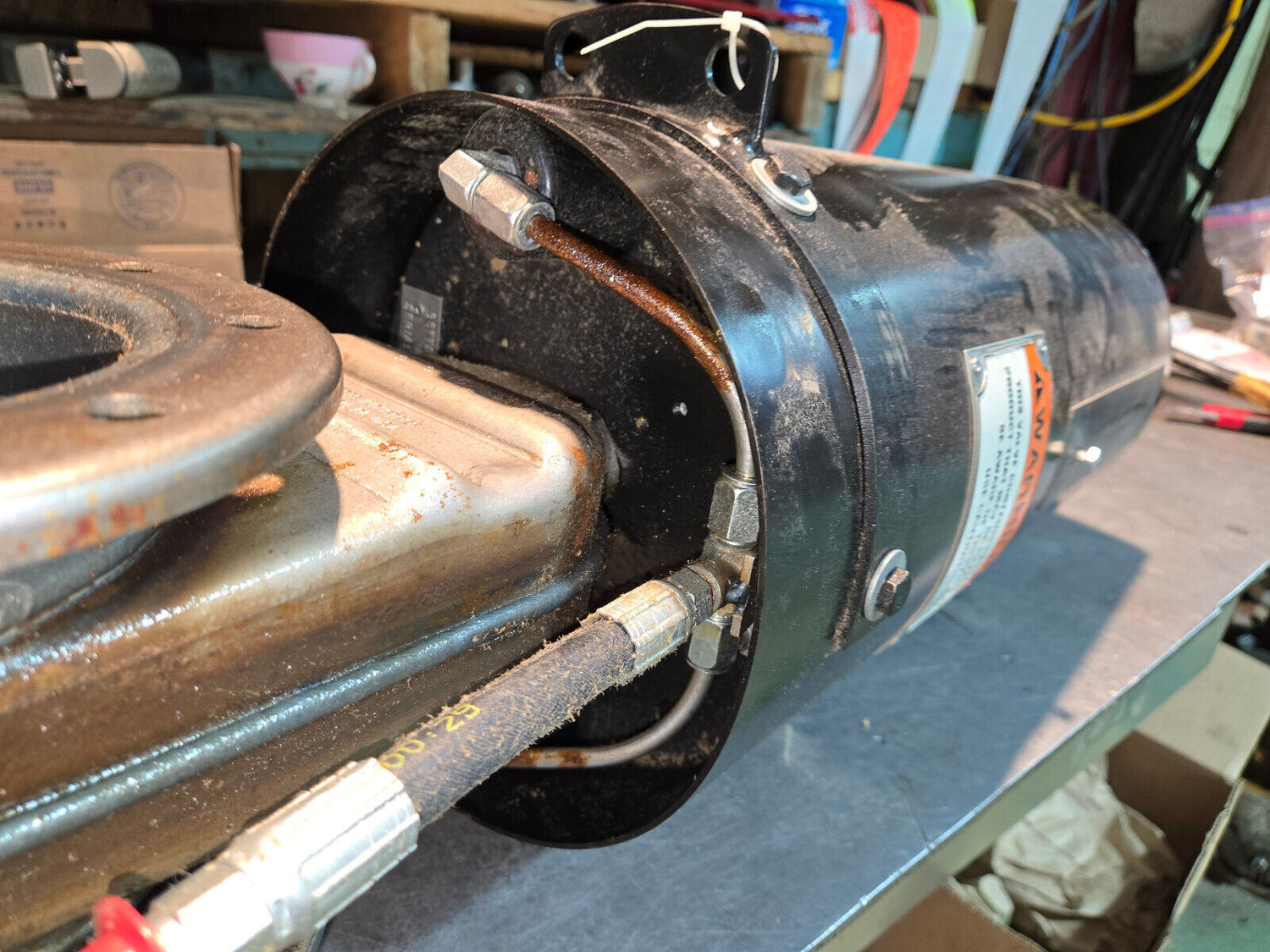

The Betts Hydraulically Operated Sliding Valve meets requirements for an external self-closing stop valve. Valve does not contain a shear section. The cargo tank must protect the valve by providing suitable protection as specified in 49 CFR 178.345-8. The standard 316 stainless discs offer premium corrosion resistance and the adjustable packing nut allows for stem adjustments. The metal-to metal seal provides a positive seal for pressure or vacuum service, but is susceptible to wear and scratches. Fusible and Frangible Plugs may be installed in the hydraulic system for remote and heat actuated closing. Betts hydraulic pump part number HP18343 will operate one to three valves.
| Material of Construction |
|---|
| MSM = Steel Body with 316 Stainless Stem & Gates |
| SSM = 316 Stainless Body, Stem & Gates |
| Flange bolt pattern per TTMA recommendations and grooved outlets per MIL-C-10387B. |
| Assembly Number | Flange Dims. | Dimensions | Wt. |
|---|---|---|---|
| SV46206*** |

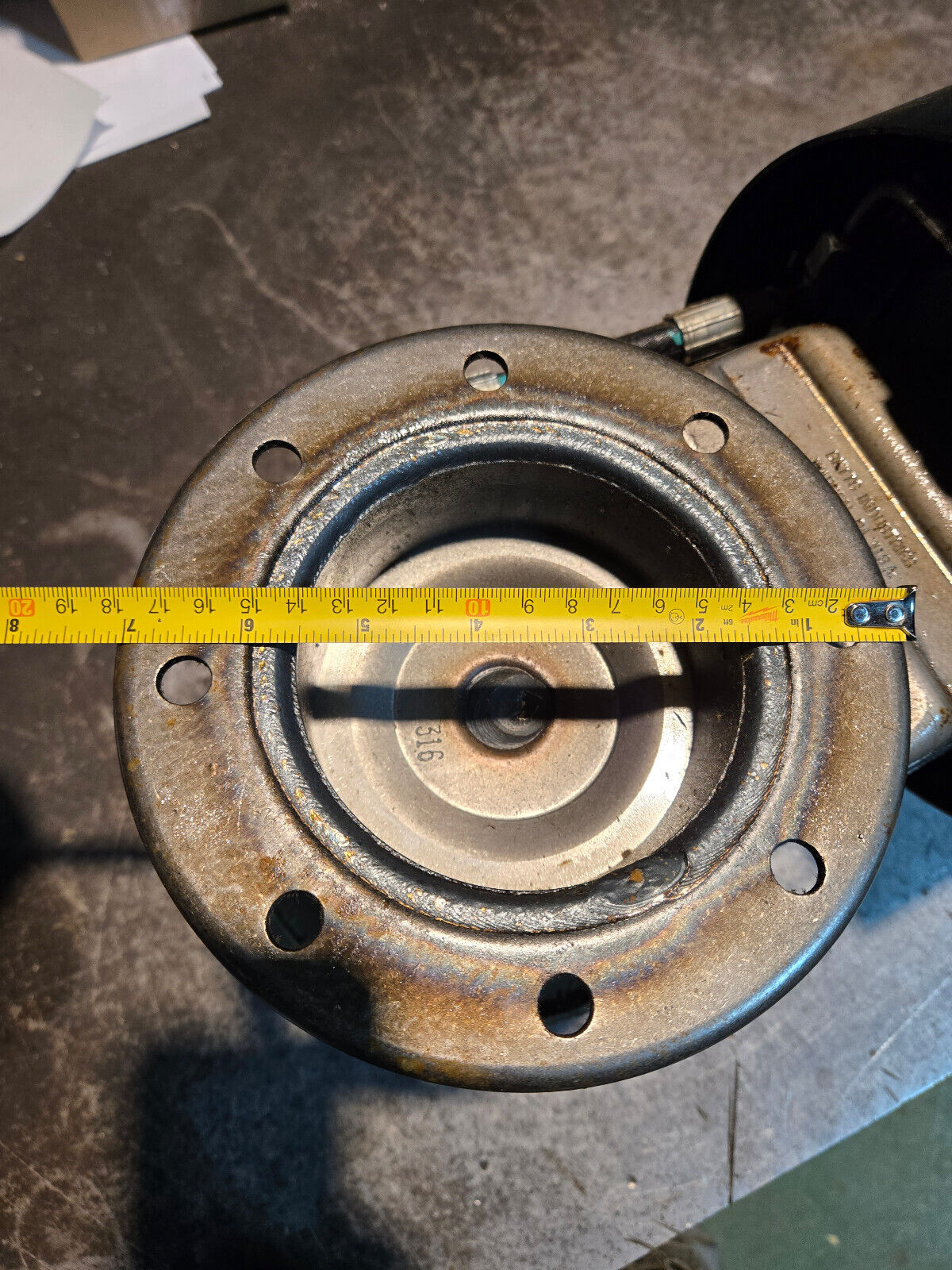

OD: 6.63" [168 mm] BC: 5.88" [149 mm] Holes: 8 - .44" [8 - 11 mm] Thick.: .31" [7.9 mm] |
A: 9.38" [238 mm] B: 25.88" [657 mm] C: 5.26" [134 mm] D: N/A E: N/A |
73.0 lb. [33.1 kg] |
| * Sump flange and other combinations available upon request. *** Last three letters of part number designate material of construction as shown below: Example Assembly SV46206SSM(Hydraulic Operated 4″ Sliding Valve - TTMA Flange x TTMA Flange) |
|||
